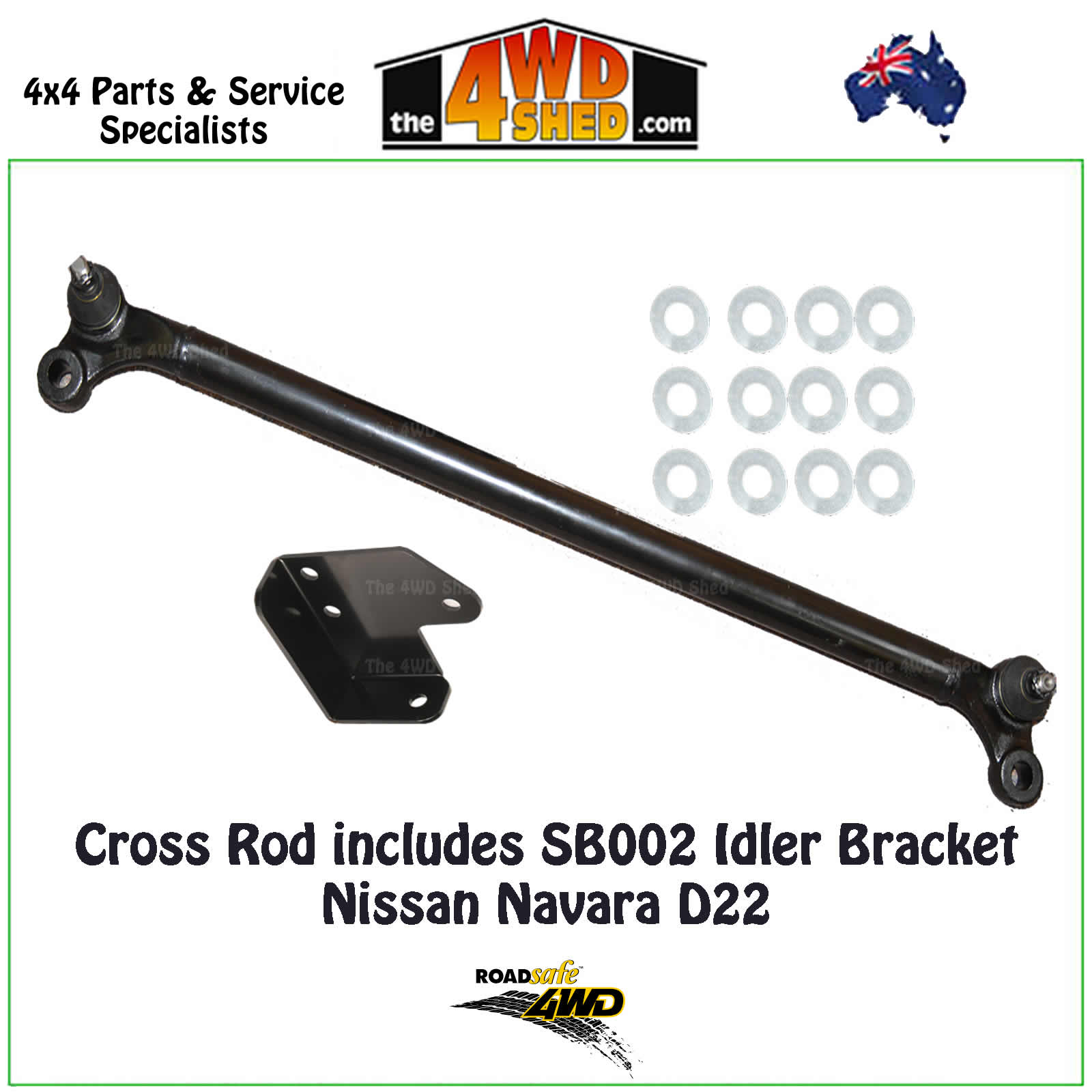

Heavy Duty Cross Rod w/ Idler Bracket & Shim Spacers - Nissan Navara D22

Roadsafe 4WD Heavy Duty Centre Cross Rod - Nissan Navara D22

with Idler Bracket & Shim Spacers

The Roadsafe TR2625HD is a Centre Rod designed for lifted Nissan Navara D22's. In standard height the side rods are more level than on a lifted vehicle, so the upward force created to the centre rod is lower. Once a vehicle is lifted, the side rod angle increases resulting in greater torsional load being applied to the centre rod. To combat this increase in torsional load, the Roadsafe TR2625HD has been designed with two fixed "T" studs (rotating only, no articulation) & supplied with spacer shims to allow for the positioning of the centre rod & the lack of tolerance that this dual stud application creates.

When fitting the TR2625HD centre rod, care must be taken to set the rod correctly to allow clearance between this & the chassis.
As an added bonus, a SB002 idler reinforcing bracket has also been included in the kit. Installed between the chassis & the idler, the bracket provides support to the bottom of the pivot pin to aid in stopping the side loading from wearing the idler bushing out too quickly.

Please Note : That the vehicle steering & suspension system was designed for a specific geometry which is changed when the vehicle is raised. Both Stud ends are fixed and do not pivot

Uprated Drag Links, Tie Rods & Track Rods also referred to as “Long Rods” are available as part of the Roadsafe 4WD range. A worn ‘Long Rod’ can cause a variety of steering related issues including wandering, erratic steering and excessive tyre wear.

Roadsafe 4WD’s range of ‘Long Rods’ are generally manufactured in an uprated (larger OD) steel than standard to aid in, let’s be diplomatic.... “bend resistance” However, please note, warranty does not extend to ‘bent’ rods – because if you hit them hard enough they will still bend!

Note: Various ‘Long Rods’, depending upon your State Regulations, are sold for off road use only, and are subject to limited warranty dependent upon application.

The 4WD Shed is an Authorised Stockist for Roadsafe 4WD.
