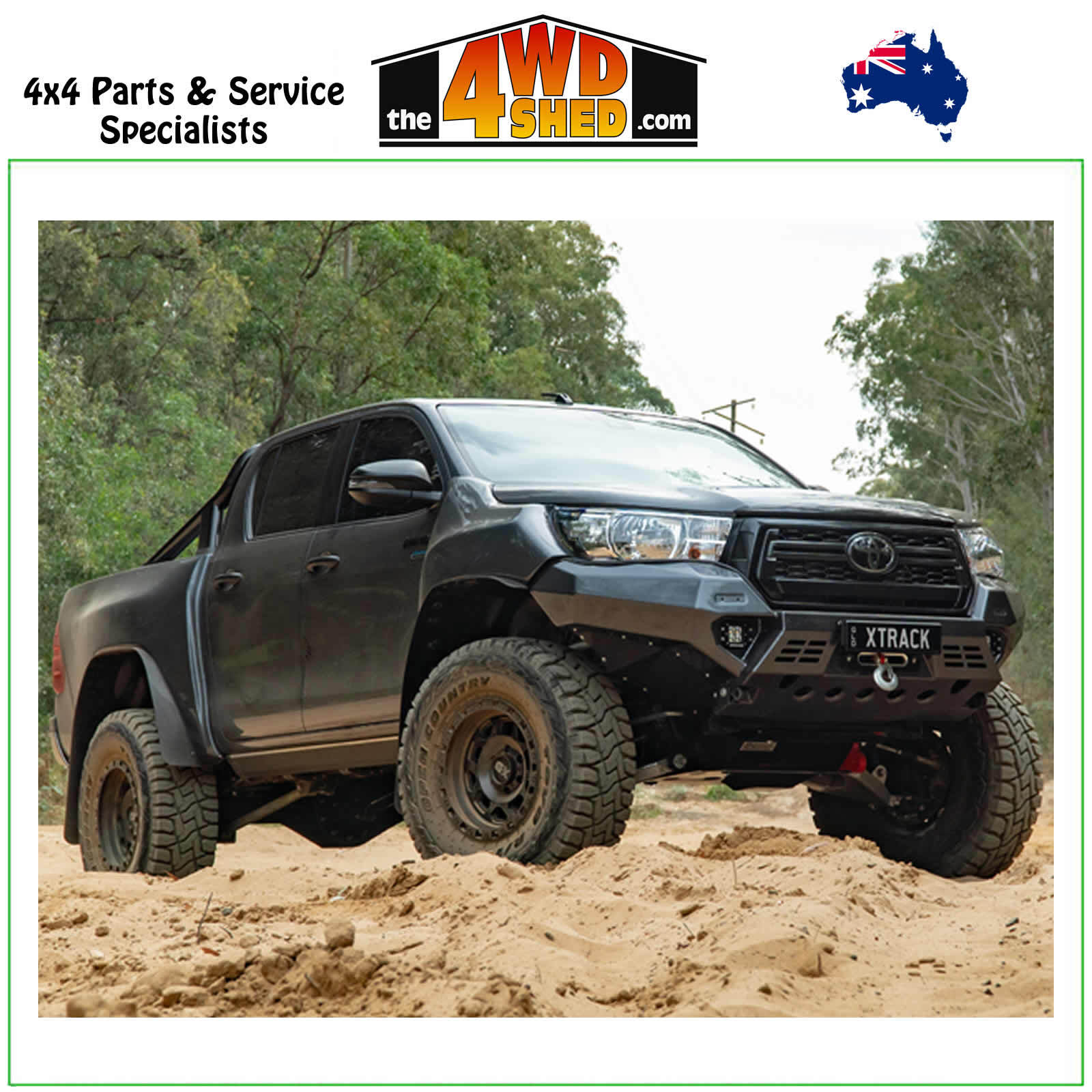

Superior X-Track Australia Wide Legal Wide Track 35 Inch Tyres 3.56T GVM - Toyota Hilux Revo 2015-Onwards

SR SR5 Dual Cab

Build Australias Most Extreme Hilux with the Superior X-Track.

BUSINESS IN THE FRONT

The X-Track uses an Australian Made Pair of Superior Extended Adjustable Chromoly Upper Control Arms which are integral to re-aligning the front end, and play a massive role in our Track Width increase of 11 Inches over Standard. These Upper Control Arms wrap around our Superior Engineering 2.5” Bore Remote Reservoir Coilovers which give the front end 11 Inches of Total Wheel Travel. The Finned Reservoir on the Coilovers gives an increase in shock cooling efficiency for those long
hard drives.

A STRONG FOUNDATION

Paired Hand in Hand with our Extended Chromoly Upper Control Arms are our Wide Track Lowers which are manufactured from 5mm thick 350 Grade steel.
Another In-House Australian Made inclusion in the X-Track Kit, these lower utilise OEM Ball Joints and Bushes for long term reliability and ease of sourcing replacement components. OEM Bump Stops are also utilised and fitted in the same location as the factory to allow as much suspension travel as possible.

MAKE IT WORK

To allow the Extended Uppers, Lowers & 2.5” Coilovers to work to their full potential, Superior Engineering has developed a new Front Sway Bar exclusively for the X-Track which allows better front-end Suspension movement. This Sway Bar and our Track Width Increase has resulted in unmatched vehicle stability. All this width and travel increase called for extended CV’s. X-Track comes equipped standard with 4340 Grade Replacement Extended Inner Axles which are coupled with the OEM CV’s. CV life is protected by a 40mm
Diff Drop kit.

OPEN WIDE

To cover the enormous 11 Inches of Front Wheel Track Increase and 35” Tyres, the Superior X-Track comes equipped with ADR Compliant Wide Track Composite replacement front guards, matched to your OEM paint colour at no extra cost. No Screw-on Jungle Flares or Bunnings Garden edging here. Wheel coverage is topped off with Superior Engineering branded Polyflex mudflaps.

STYLISH FRONT-END PROTECTION

To suit the Wide Track Front guards, a modified Winch Compatible Bullbar is supplied that seamlessly compliments the aggressive styling of the Superior Engineering X-Track whilst remaining functional in giving an excellent approach angle. Pre-Production Sample Shown - Final bar design may vary.

WHEN THE GOING GETS TOUGH

It is unlikely you will ever get stuck or belly out in your X-Track, but if you do, Superior Engineering have you covered with our full Underbody Guard Kit (Engine/Sump, Gearbox and Transfer Guard) that includes a Front Recovery Point (SWL 5,000kg).

LET IT BE KNOWN…

Superior Engineering has made sure everyone you drive past or park next to knows just what you’re driving when they look up at you, thanks to our Superior X-Track Chrome Door Badges and Chrome Tailgate Badge.

WIDE WORLD OF COILS

Why ride on leaf springs when you can ride on coils springs? The heart and soul of the Superior Engineering X-Track is the Wide Track Coil Converted Rear End. This kit gives you 11 Inches of Track Width Increase gains to match the front courtesy of our Australian Made Diamond Diff Housing. This housing has been Designed, Developed and Manufactured right here in Australia using a combination of 4140 Chromoly and 350 Grade Steel, with 4340M Grade Axles.

DROP IT LIKE IT’S HOT

Everyone knows Suspension Travel is king when you’re playing in the big ruts. Superior X-Track is unrivalled by its peers with a total of 14 Inches of Rear Wheel Travel standard which lets the 35” Rear Tyre drop below the sill like it’s not even trying.

PARTY IN THE BACK

Just like the front end, the 11 Inch track increase in the rear demanded seamless wheel coverage. Superior X-Track comes equipped with our Wide Track Composite tub guards, matched to your OEM paint colour. Wheel coverage is topped off with a pair of Superior Engineering branded Polyflex mudflaps.

WORK HARD, PLAY HARD

Australians love a Ute that not only looks good but maintains its underlying “Workhorse” status. Superior Engineering understands this and developed the X-Track with a Gross Vehicle Mass (GVM) of 3,560kg, whilst maintaining the 3,500kg towing capacity we all love and need. (Gross Combined Mass/GCM is not increased).

BIG TYRES = BIG CLEARANCE

Ground Clearance in any IFS vehicle is always a talking point. Superior X-Track legally offers a massive increase in ground clearance, whilst complimenting the stance of the wide track suspension through Tyre sizes as big as 35 Inches, on wheel offsets as wide as -12. When Coupled with a 35 Inch Tyre, the X-Track sits up to 6 Inches taller than its stock standard little brother.

WHERE WE’RE GOING, WE DON’T NEED ROADS…

It’s inevitable that one day when playing off-road, you will need to call on your spare Tyre, so we’ve got you covered! The Superior X-Track Coil Conversion Kit allows room enough for a true 35” Spare Tyre under the tub with a 3 Inch Exhaust fitted.

100% STREET LEGAL AUSTRALIA WIDE

Superior X-Track Vehicles are manufactured and approved to be Street Legal in all Australian States & Territories under Second Stage of Manufacture when built Pre-Registration.

EXCLUSIVELY BY SUPERIOR ENGINEERING

Do you want to stand out from the regular crowd in a Limited-Edition hand-built vehicle? You got it. Superior Engineering X-Track is built exclusively In-House by Superior Engineering, and are not available anywhere else in the world.

Features

  • 3560kg GVM
  • 3500kg Towing Capacity
  • up to a 35" Tyres
  • 43° Maximum Approach Angle
  • 34° Maximum Departure Angle
  • 2.6" more Running Clearance than the Ford Ranger Raptor* (350mm X-Track vs 283mm Ranger Raptor)
  • 2" wider track than the Ford Ranger Raptor* (1765mm X-Track vs 1710mm Ranger Raptor)
  • 527kg more payload than the Ford Ranger Raptor* (1299kg X-Track vs 772kg Ranger Raptor)
  • 1000kg more towing capacity than the Ford Ranger Raptor* (3500gk X-Track vs 2500kg Ranger Raptor)

*Comparisons are based on RVCS specifications submitted by Ford Australia and are correct at time of publication 25/11/2021

Kit Includes

  • 1 x Superior X-Track Coil Conversion
  • 1 x Superior X-Track Coil Diff Kit
  • 2 x Superior Adjustable 2.5 Monotube Remote Reservoir Strut Front
  • 2 x Superior Adjustable 2.0 Monotube Remote Reservoir Shock Rear
  • 2 x Superior Shock Reservoir Mount Front
  • 2 x Superior Shock Reservoir Mount Rear
  • 1 x Pair Front Coils
  • 1 x Pair Rear Coils
  • 2 x Superior X-Track Front Upper Control Arms
  • 2 x Superior X-Track Front Lower Control Arms
  • 1 x Superior Front Axles Suitable for X-Track
  • 1 x Superior Rear Axles Suitable for X-Track
  • 1 x Superior Gen 2 Diff Drop Kit 40mm
  • 1 x Superior Diff Breather Kit
  • 1 x Superior Engineering X-Track Front Sway Bar
  • 1 x Superior Aluminium Sway Bar Mounting Bracket Kit
  • 2 x Superior Engineering X-Track Outer Steering Rod Extensions
  • 2 x Superior X-Track Wide Track Front Guards
  • 2 x Superior X-Track Wide Track Rear Guards
  • 1 x Superior X-Track Gearbox Guard
  • 1 x Superior X-Track Transfer Case Guard
  • 1 x Superior X-Track Sump Guard
  • 1 x Superior X-Track Engine Guard
  • 1 x Superior X-Track Recovery Point
  • 2 x Superior Engineering X-Track Guard Decal Chrome
  • 2 x Superior Engineering X-Track Guard Decal Vinyl
  • 1 x RAD Bullbar (No Loop)
  • 4 x Superior X-Track Mud Flaps
  • 1 x Superior CAN Bus Speedo Corrector
  • 2 x LED Autolamps Cat 6 Side Repeater/Indicator

The 4WD Shed is an Authorised Stockist for Superior Engineering.

Kit Pricing is subject to change. Please contact us for a written quote. Kits are order in & potential wait times may occur. We will discuss all lead times & will work with both you & your dealership as required.

SSM Facility No : P17773



(SE-42788)

SKU SE-42788
Brand Superior Engineering
Shipping Weight 200.0000kg
