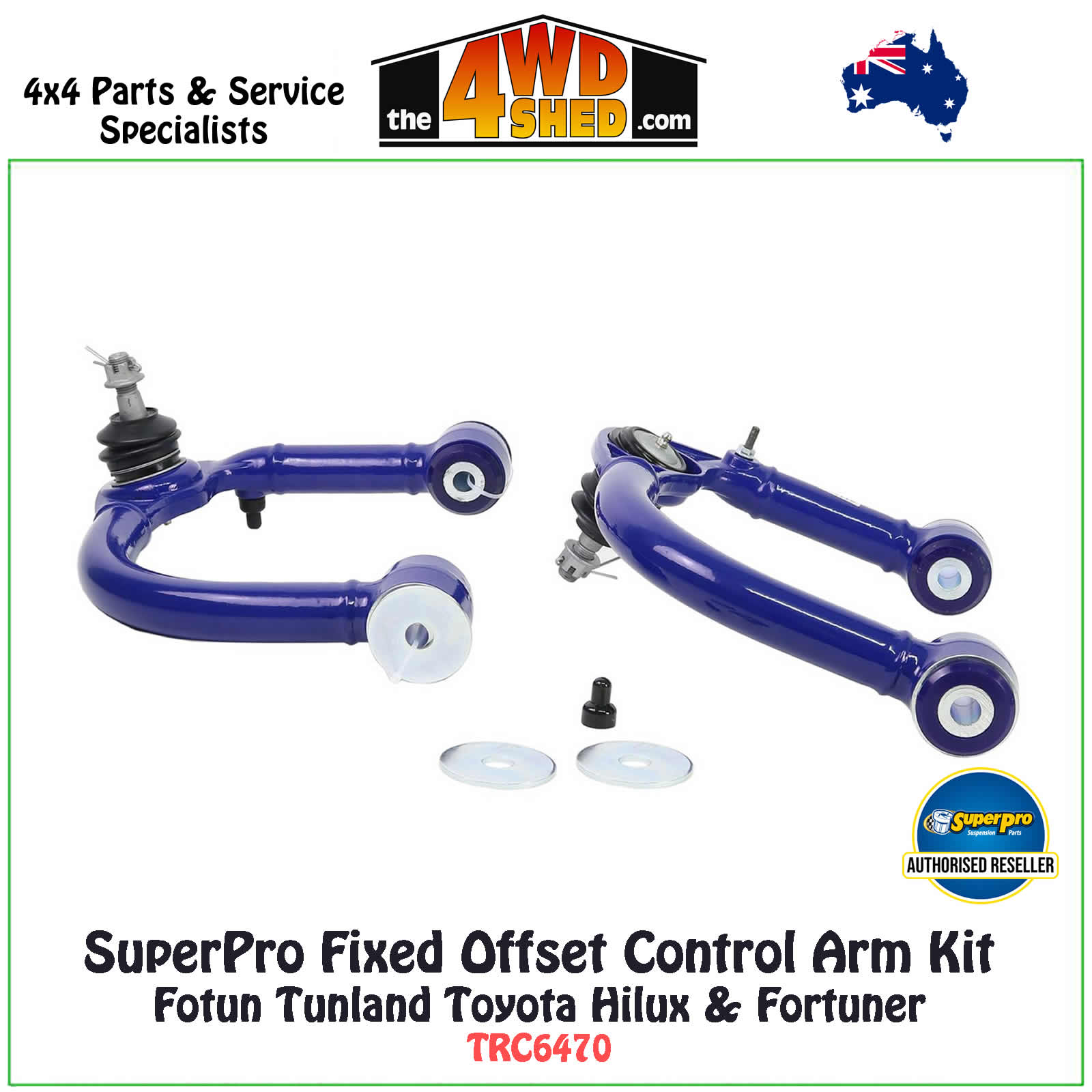

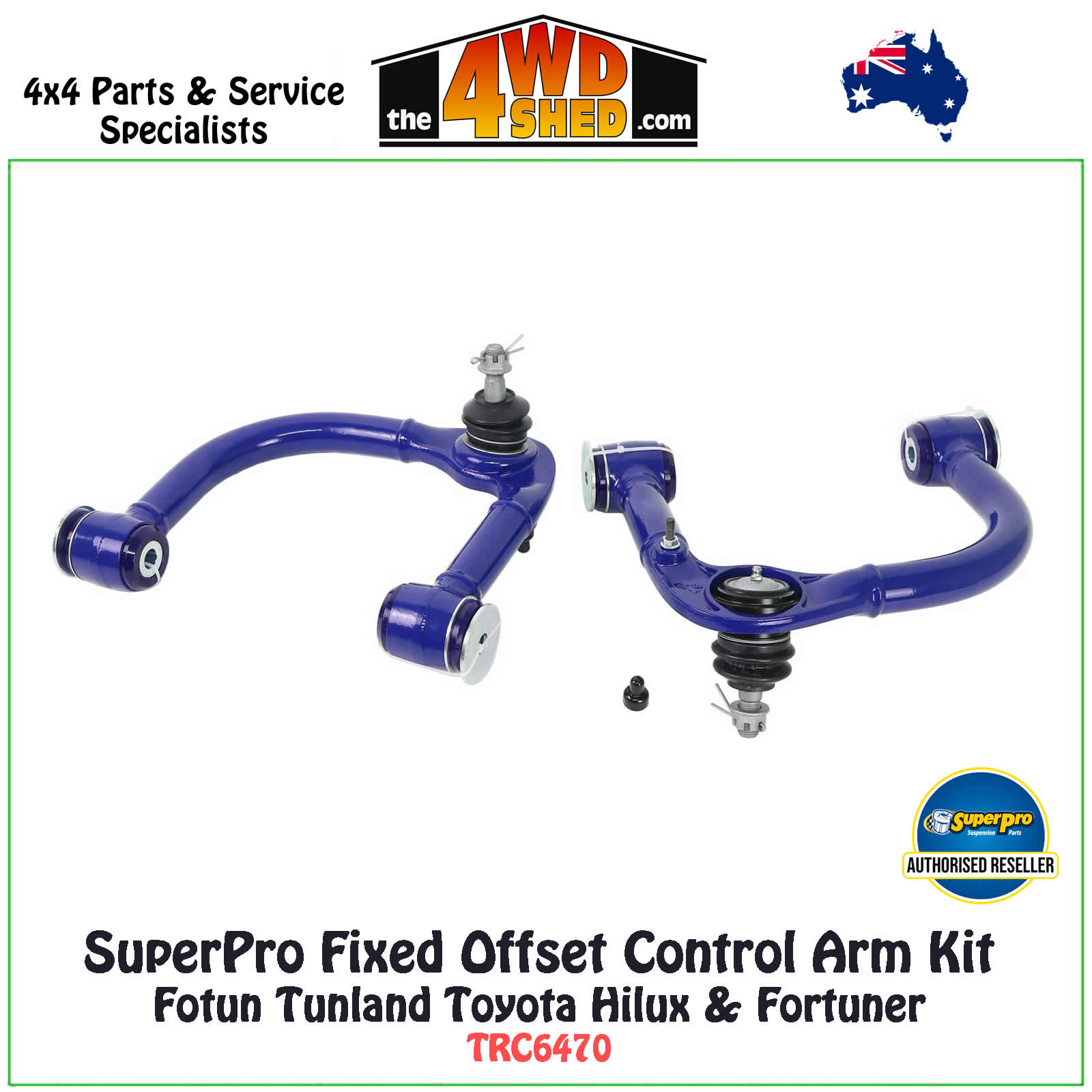

SuperPro Fixed Offset Control Arm Kit - Fotun Tunland

Upgrade your 4WD with a SuperPro 4x4 Control Arm! Gain extra clearance, articulation, correct alignment and install a stronger control arm designed for harsh off road conditions.

  • Lifetime Warranty
  • Enhances your 4WD's handling and performance
  • Designed to solve alignment issues when you lift your 4WD
  • Approved Nationally - VSB 14 Compliant (ADR compliant)
  • High quality, form factor welding and assembly
  • High grade Steel, for increased strength

For every inch a vehicle is raised the vehicles geometry is permanently changed, causing alignment issues. If a lift kit is installed, then a control arm should also be installed to solve alignment issues.

SuperPro's 4WD control arms are manufactured, tested and designed in Australia, ensuring high quality development and manufacturing with local reliable resources. SuperPro 4WD control arms are built to meet the high quality requirements set by SuperPro's Q&A team; designed to outperform both competitor and OE products. Following our business motto "Engineered to Outperform", SuperPro exceeds many design expectations and has been certified as such.

Left and Right Offset Arms for Lifted Vehicles with Fixed Caster and Camber Correction

Vehicle Application Information:

  • providing an increase between +2.5 and +3.5 degrees of caster and up to 1.5 degrees of negative camber

To Suit

  • Foton Tunland
  • Toyota Fortuner 2005-2015
  • Toyota Fortuner 2015-Onwards
  • Toyota Hilux 2005-2015 KUN26 GGN25 4WD
  • Toyota Hilux 2015-5/2020 GGN GUN 4WD

Fixed Offset Arms fitted with Uprated Ball Joints and SuperPro Bushes to reduce Arm movement

The SuperPro Fixed Offset Upper Control Arm is an all-in-one solution for any vehicle that has been lifted between 40mm and 65mm (2.5”). Providing an increase between 2.5 and 3.5 degrees of caster and up to 1.5 degrees of negative camber increase (figures quoted are based off a 50mm Lift) along with greater clearance to the coil over strut and more articulation of the arm.
Getting the correct alignment is no longer a problem.
Key Features
  • Fixed offset alignment correction arms
  • In-built camber and caster change to suit lifted vehicle
  • Increased clearance between spring and Control Arm at full articulation
  • Heavy Duty ball joint
  • SuperPro Bushings
Fitting info
  • Axle alignment required after fitting
  • 3/5 Fitment Difficulty
  • Fitting Position: Front
  • 3hrs Fitment Time

Note these arms will improve bump steer and are intended to be used in vehicles with a lift of 30-70mm you should achieve a castor increase of 2.5 -3.5 degrees and 1.5 degrees negative camber.

Fitting is available in our Bayswater, Vic workshop. Additional costs may apply.

The 4WD Shed is an Authorised Reseller of SuperPro.


Brand SuperPro
Shipping Weight 9.0000kg
