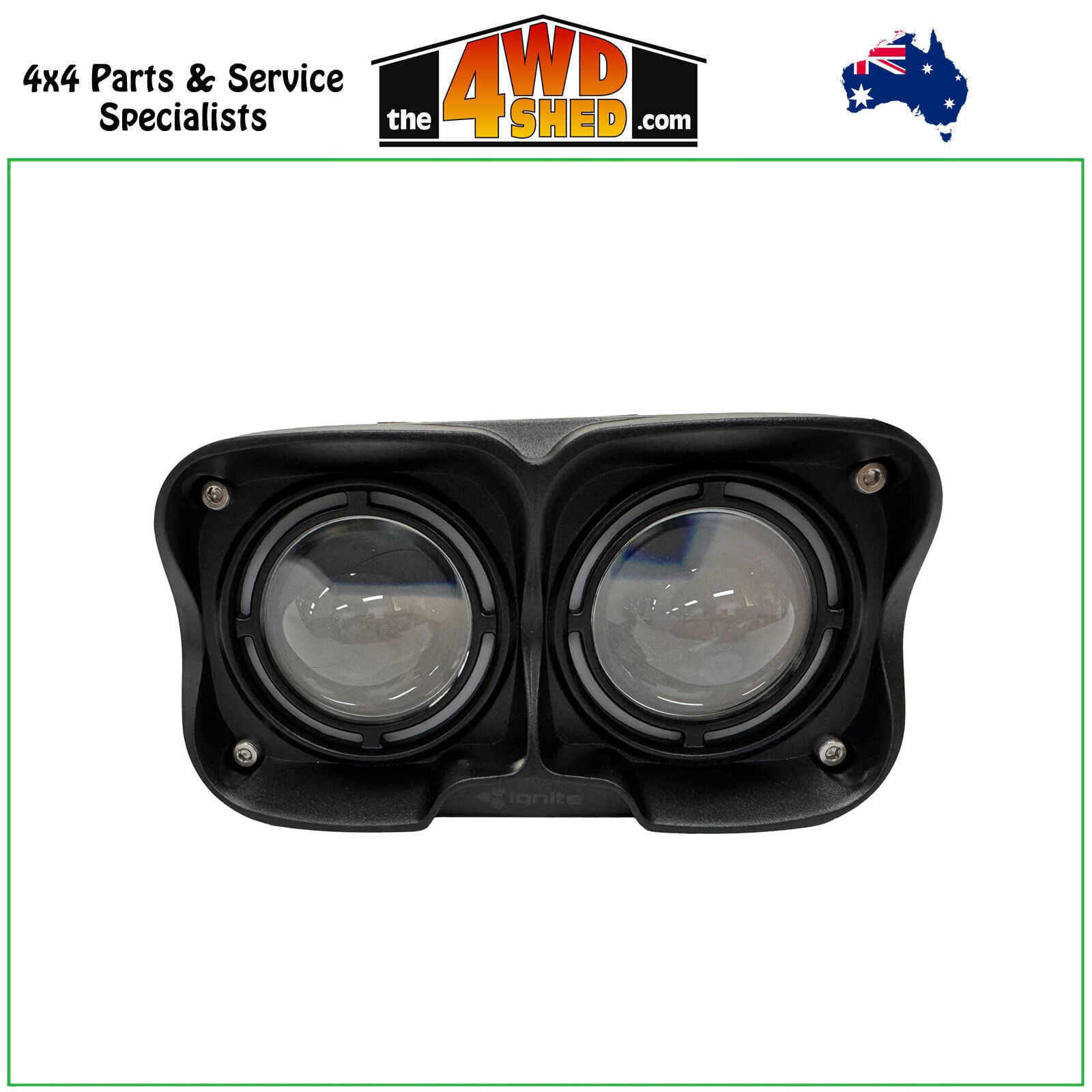

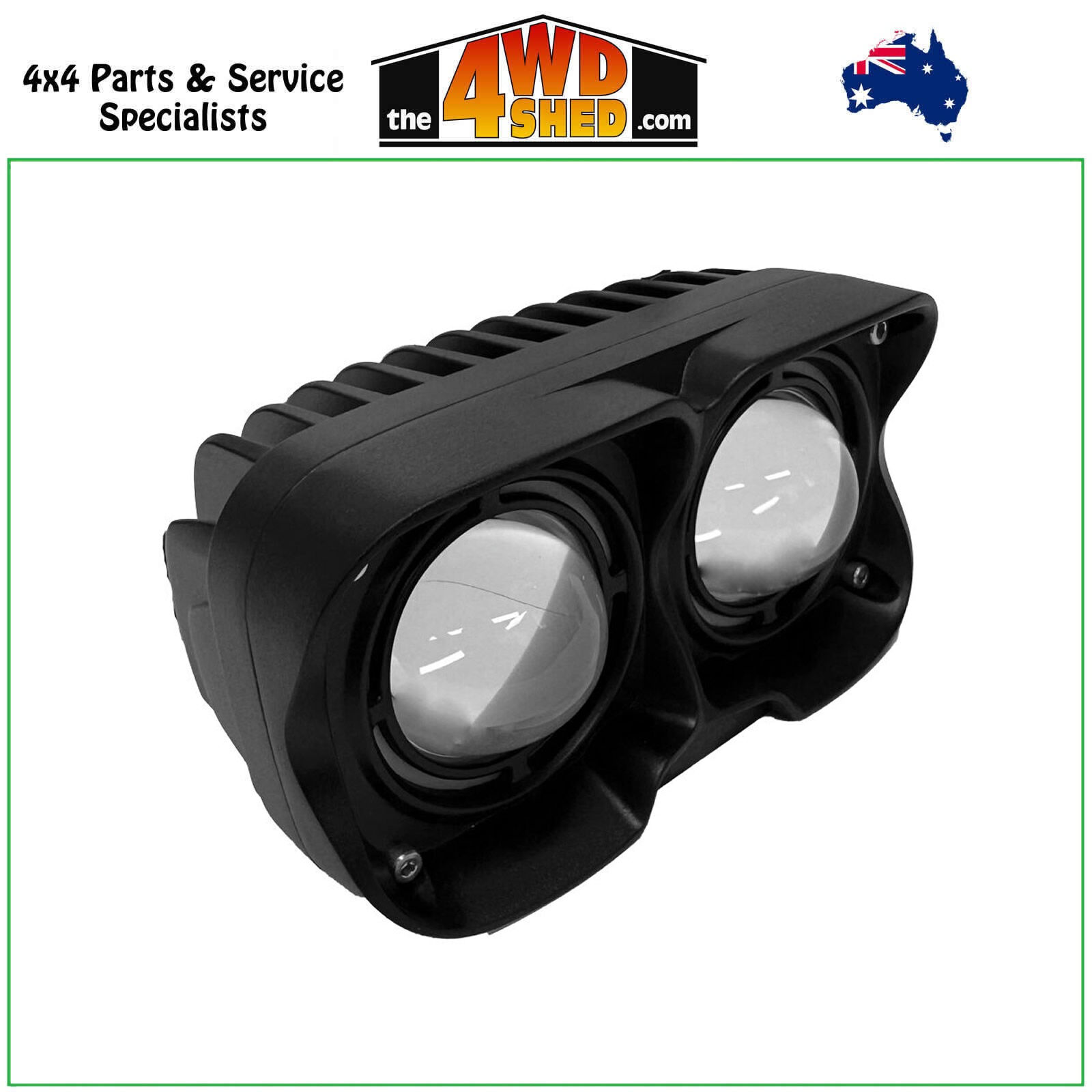

Alpha Miniature LED Tri Colour 72W Driving Light 6.9" - Twin
More infoAlpha Miniature LED Tri Colour 72W Driving Light 6.9" - Twin
The Ignite Miniature LED Driving Light is built for compact mounting locations where strong long-range visibility is still required. Small in size but engineered to perform, this 6.9" twin led driving light delivers a focused spot beam, durable construction and a built-in tri-colour position lamp.
The integrated position lamp can be set to white, amber or blue using a momentary switch, then retains the selected colour on the next power-up. It can also be left unwired where the position lamp is not required.
Features
- 72W main light output with 7,000 lm raw lumens
- 489 m beam reach at 1 Lux
- 9° Spot (Pencil) beam pattern
- Tri-colour position lamp: white, amber or blue
- 9-36V DC multi-volt operation
- Black powder coated die cast aluminium alloy housing
- Lexan polycarbonate lens
- 500mm lead with 4 pin Deutsch plug
- IP68 rated with 20G shock resistance
- ECE R149, ECE R10, CE and RoHS approvals
Specifications
- Effective lumens: 3,400 lm
- Peak beam intensity: 240,000 cd
- Colour temperature: 5,700K
- Main draw: 6.10A @ 12V / 3.05A @ 24V
- Position light LEDs: 16 x 0.65W SMD
- Position draw: 0.55A @ 12V / 0.27A @ 24V
- Dimensions: 179 mm W x 97.6 mm H x 61.1 mm D
- Weight: 1,470 g
- Operating temperature: -40°C to +60°C
- LED lifespan: 50,000 hours
- Warranty: 3 years
(IDL0236S)
| SKU | IDL0236S |
| Brand | Ignite |
| Shipping Weight | 2.7000kg |
