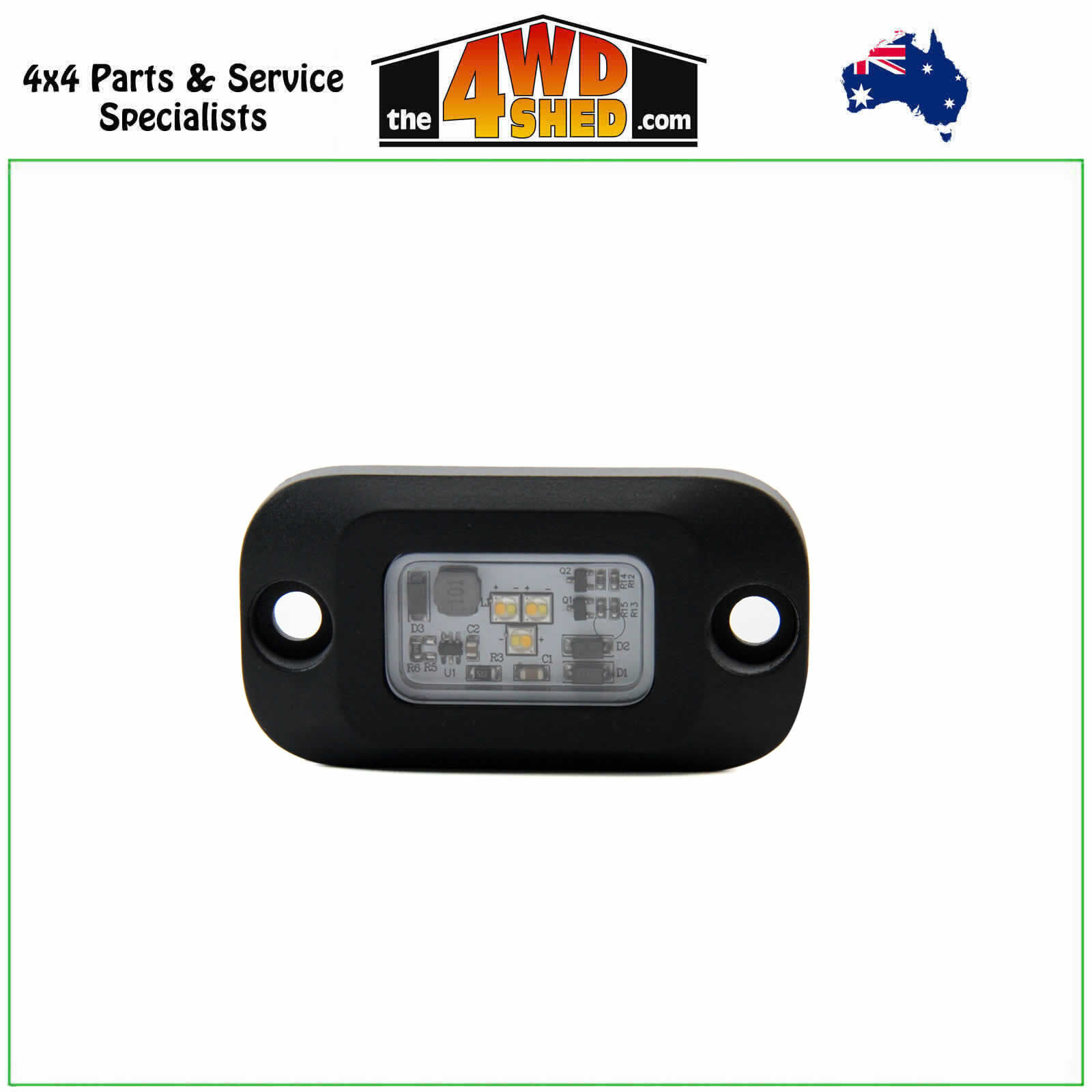

Compact. Bright White. Built for the Outdoors.
These high-performance LED Rock Lights deliver exceptional brightness in a compact, rugged design—engineered for the harshest outdoor conditions. With ultra-low power draw, simple installation, and a fully sealed, 100% waterproof housing, they’re as efficient as they are tough.
Versatile by design, they’re ideal for:
- 4×4’s & UTVs
- Outdoor & campsite lighting
- Underbody & canopy setups
- Campers, vans & cargo compartments
- Engine bays & toolboxes
- Reverse lights, annexes & awnings
- Roof racks, marine, cabins & boat decks
Wherever you need reliable, bright illumination—these LED Rock Lights deliver.
Compact Design
Small footprint fits virtually anywhere—perfect for off-road vehicles, marine applications, and tight installation spaces.
Durable, Waterproof Construction
Built tough from high-quality materials with an IP68-rated housing for complete protection against water, dust, and harsh outdoor conditions.
Brilliant Wide-Angle Illumination
Delivers powerful, wide-angle lighting with 5000k colour temp for bright, crisp visibility almost anywhere it’s needed.
Ultra-Low Power Consumption
Engineered for efficiency with minimal power draw—preserves battery life without sacrificing brightness.
Multi-Voltage Compatibility
Ready to Install – Comes with bare wire leads, full mounting hardware, and supports 12V & 24V systems for quick, hassle-free setup.
Looking for more features? Check out our fully loaded LED Rock Light—dual-colour output, built-in switch with dimmer, waterproof design, ultra-low power draw, and a compact footprint that fits anywhere.
Alternatively, Get to know our range of LED Strip Lights—12V, featuring dimmable control and tri-colour options to suit any setup.
Features
- Top-Grade LEDs — Brilliant brightness and unbeatable visibility.
- 140° Wide Beam — Covers a broad area for maximum illumination.
- Tough & Waterproof — Built to last with powder-coated cast aluminum housing & UV-coated polycarbonate lens for strength & weather protection.
- Bare-Tail Design — Easy direct-to-power installation or connect your own DC plug.
- Low Power Draw — Efficient enough to keep your batteries going longer.
- Ultra-Compact — Tiny footprint fits anywhere from off-road rigs to marine setups.
- 2-Year Warranty — Peace of mind with durable, long-lasting performance.
Specifications
- LIGHT SOURCE: SMD3535 LED
- INPUT VOLTAGE: 10V ~ 30V DC
- CURRENT DRAW: 0.42A 12V (White LED) or 0.21A 24V
- POWER CONSUMPTION: 5W Max (White LED)
- WHITE LIGHT TEMPERATURE: 5000k
- LED COLOUR MODE OPTIONS: White
- INGRESS PROTECTION RATING: Fully Waterproof IP68
- WORKING TEMPERATURE: -40 ℃ - 145 ℃
- BEAM ANGLE: 140 Degree
- LIFETIME: 50,000 Hours Approx
- POLARITY: Reverse Polarity Protected
- HOUSING MATERIAL: ADC12 Aluminium, with Powder Coating
- LENS MATERIAL: UV-Coated Polycarbonate
- CONNECTION: Bare Tail
- MOUNTING: Via holes at each end of the light
- CABLE LENGTH: 1m
- HOUSING COLOUR: Black
- DIMENSIONS:74mm (L) x 38mm (W) x 12mm (H)
- WEIGHT: 0.3kg
- DIMMABLE: No
- SWITCH: No
- PARTS: Rock Light (1), Cable Attached (1m), Standard Elastic Silicone Pad (1), Screws and/or Bolts w/ Nuts, Washers (1 Pair)
- WARRANTY: 2 Years
Compact, ultra-low power draw and fully sealed, 100% waterproof LED Rock Lights – they’re as efficient as they are tough.
